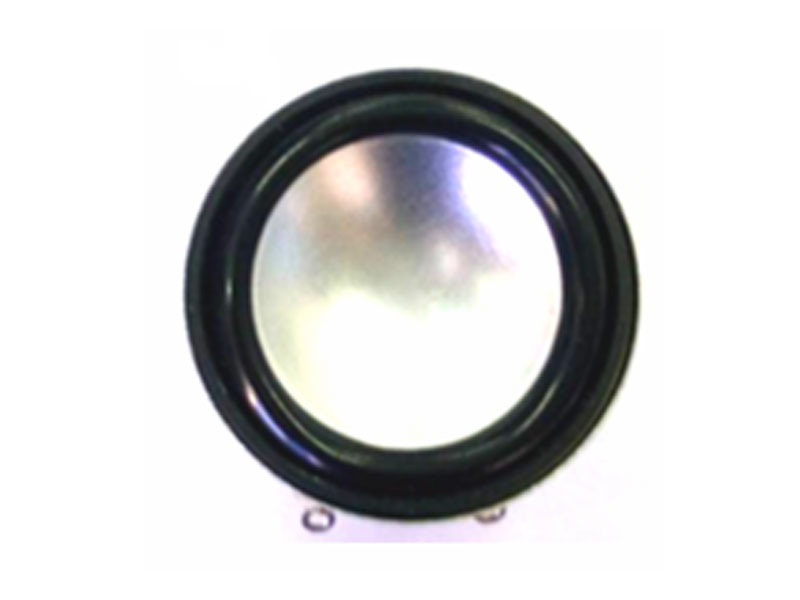

DESCRIPTION SPEAKER

SPEAKER SPECIFICATION

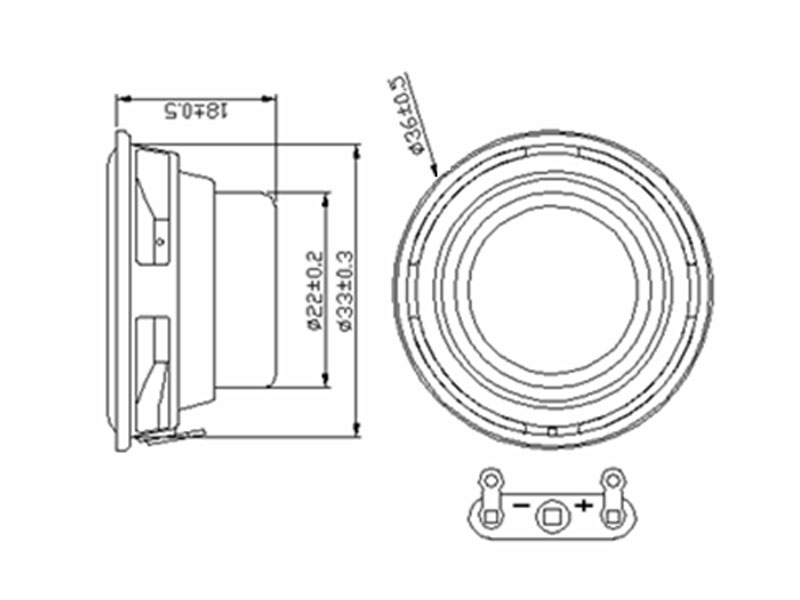

Outer Dimensions 36 mm(See attached drawing)
Rated (Max.)Input 2 W (3W)
Voice Coil Imp. 6  ± 0.6    Ω  (  1000  Hz 1 V )
Lowest Resonance Frequency ( fo ) 200  ±   40       Hz  ( 1 V   )
Sound Pressure Level 77  ± 2   dB   ( 1 w 1 m )  at(0.4)(0.6)(0.8)(1.0)KHZ
Frequency Response  Deviation FO 150Hz ~    20 KHz max  -10 dB
Operating temperature -20  +70 ± 2   ℃        Hours       2 0 ~ 5 0 %  R.H.
Load test White noise at   3  W 48 hours
Weight 22  g

Other non-stipulated matters are based on CNS4784 4785 4786 based on JIS.C. 5530 5531

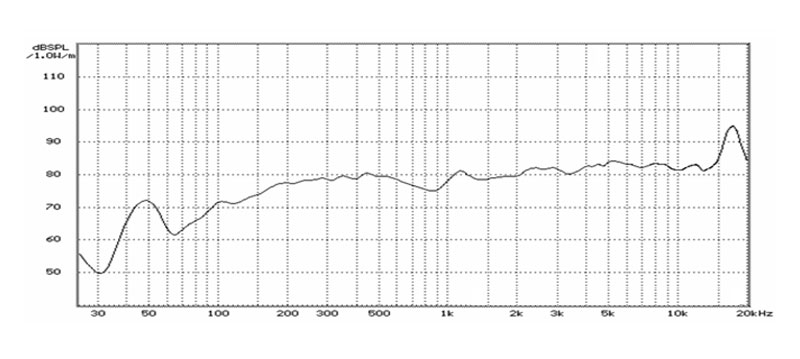

FREQUENCY RESPONSE CURVE(7*18)
