36TC

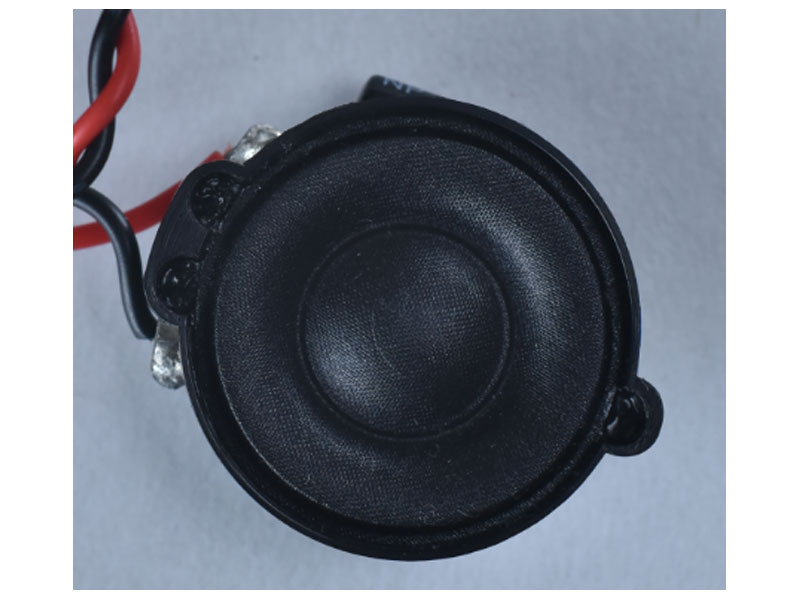

DESCRIPTION SPEAKER
SPEAKER SPECIFICATION

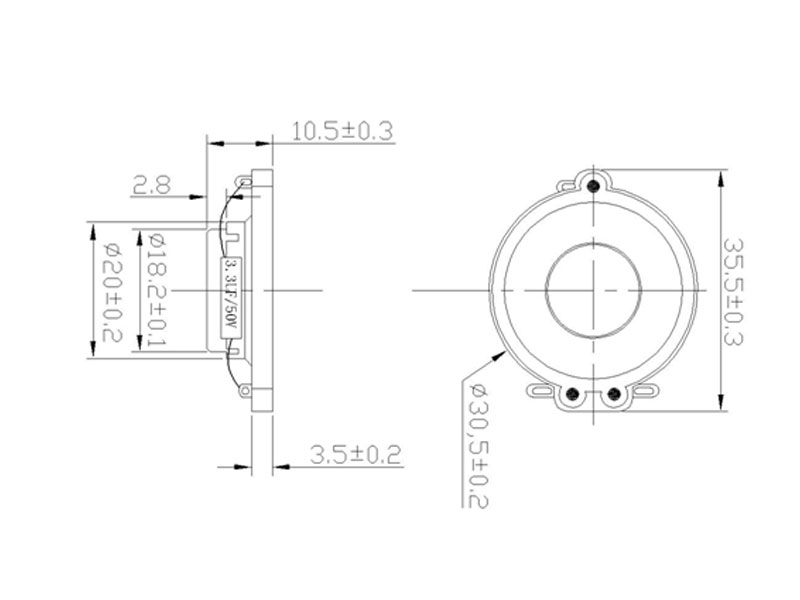

| Outer Dimensions | 36 mm(See attached drawing) |
| Rated (Max.)Input | 15 W (20W) |
| Voice Coil Imp. | 4 ± 0.6 Ω ( 5 Hz 1 V ) |
| Lowest Resonance Frequency ( fo ) | 1800 ± 360 Hz ( 1 V ) |
| Sound Pressure Level | 92 ± 3 dB (1 w 0.5 m ) at(3.0)(4.0)(5.0)(6.0)KHZ |
| Frequency Response Deviation | FO Hz ~ 20 KHz max -10 dB |
| Operating temperature | -20 +70 ± 2 ℃ Hours 2 0 ~ 5 0 % R.H. |
| Load test | White noise at 15 W 48 hours |
| Weight | 27.5 g |
Other non-stipulated matters are based on CNS4784 4785 4786 based on JIS.C. 5530 5531
FREQUENCY RESPONSE CURVE(7*18)
