DESCRIPTION SPEAKER

SPEAKER SPECIFICATION

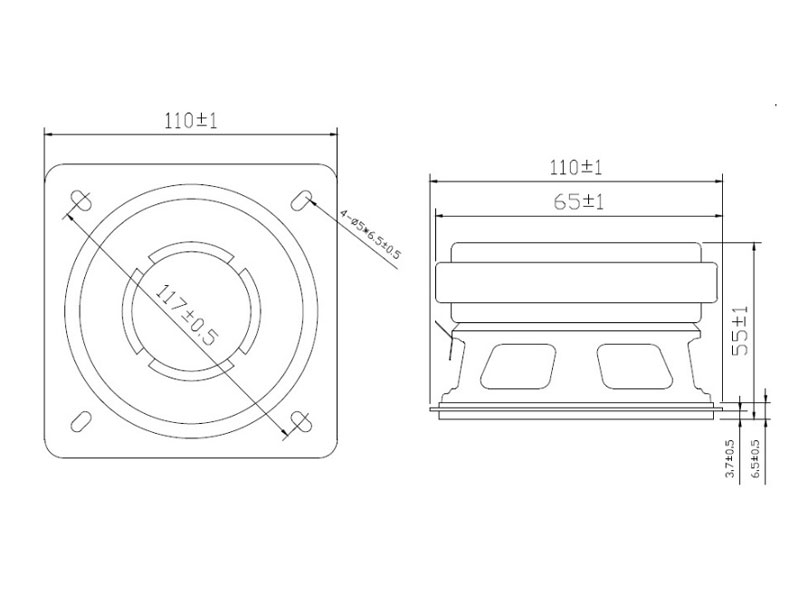

Outer Dimensions 103 mm(See attached drawing)
Rated (Max.)Input 15 W (20W)
Voice Coil Imp. 6  ± 0.9    Ω  (  300  Hz 1 V )
Lowest Resonance Frequency ( fo ) 57  ±   12       Hz  ( 1 V   )
Sound Pressure Level 90  ± 2   dB   ( 1 w 0.5 m )  at(0.6)(0.8)(1.0)(1.2)KHZ
Frequency Response  Deviation FO Hz ~    7 KHz max  -10 dB
Operating temperature -20  +70 ± 2   ℃        Hours       2 0 ~ 5 0 %  R.H.
Load test White noise at  15   W 48 hours
Weight 405  g

Other non-stipulated matters are based on CNS4784 4785 4786 based on JIS.C. 5530 5531


FREQUENCY RESPONSE CURVE(7*18)
