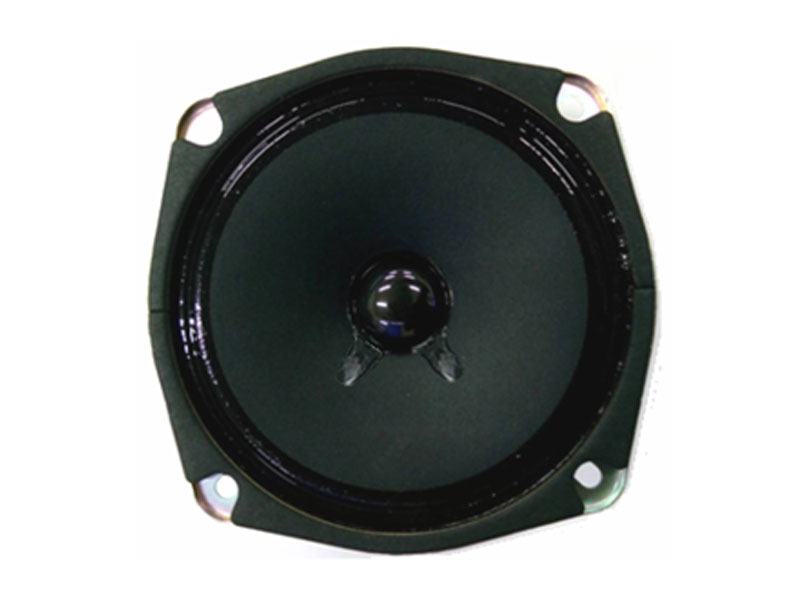

DESCRIPTION SPEAKER

SPEAKER SPECIFICATION

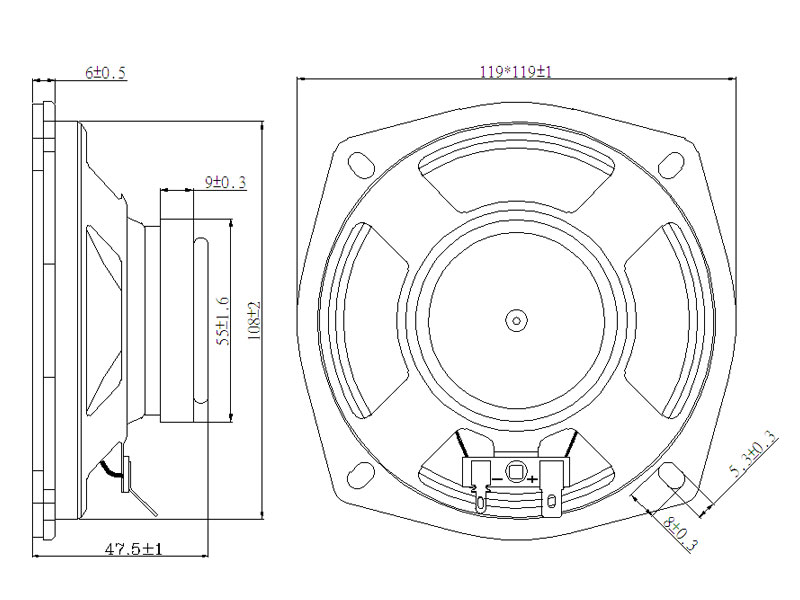

Outer Dimensions 119 mm(See attached drawing)
Rated (Max.)Input 6 W (9W)
Voice Coil Imp. 8  ± 1.2    Ω  (  430  Hz 1 V )
Lowest Resonance Frequency ( fo ) 110  ±   22       Hz  ( 1 V   )
Sound Pressure Level 90  ± 2   dB   ( 1 w 1 m )  at(0.3)(0.4)(0.5)(0.6)KHZ
Frequency Response  Deviation FO 90Hz ~    15 KHz max  -10 dB
Operating temperature -20  +70 ± 2   ℃        Hours       2 0 ~ 5 0 %  R.H.
Load test White noise at   9  W 48 hours
Weight 275  g

Other non-stipulated matters are based on CNS4784 4785 4786 based on JIS.C. 5530 5531

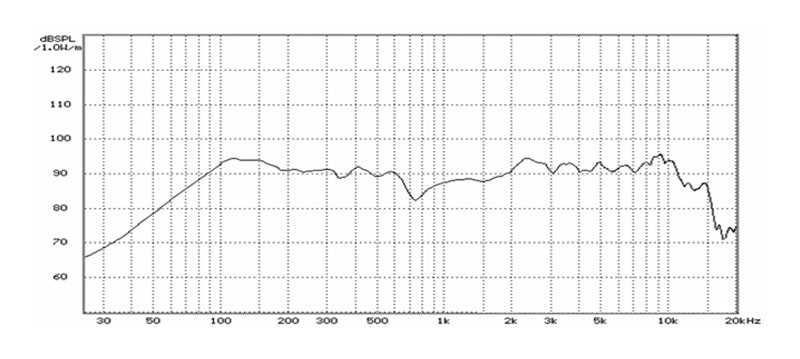

FREQUENCY RESPONSE CURVE(7*18)
