156S-TA

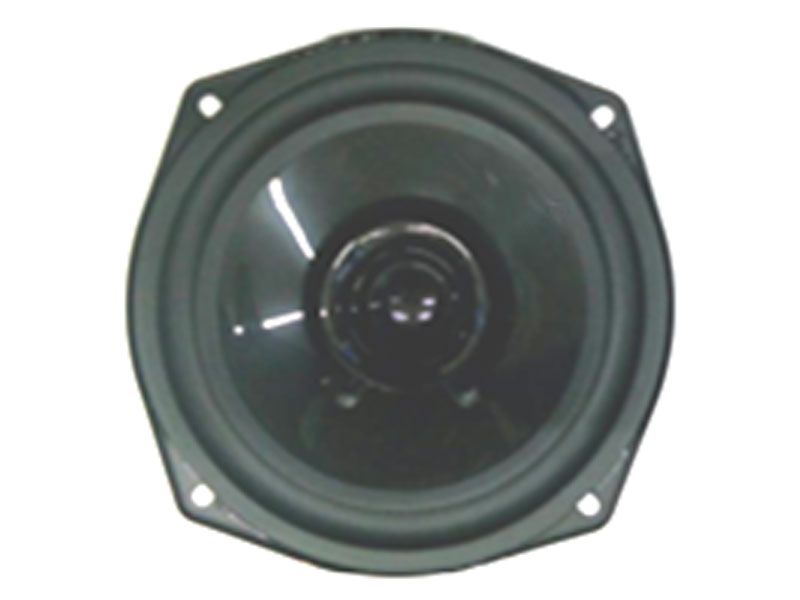

DESCRIPTION SPEAKER
SPEAKER SPECIFICATION

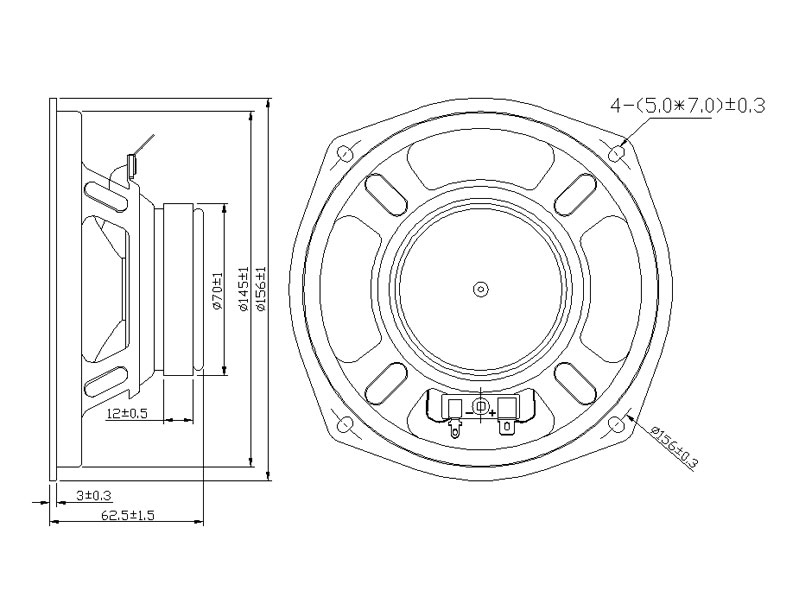

| Outer Dimensions | 156 mm(See attached drawing) |
| Rated (Max.)Input | 7 W (15W) |
| Voice Coil Imp. | 8 ± 1.2 Ω ( 800 Hz 1 V ) |
| Lowest Resonance Frequency ( fo ) | 70 ± 14 Hz ( 1 V ) |
| Sound Pressure Level | 90 ± 2 dB ( 1 w 1 m ) at(0.8)(1.01.2)(1.5)KHZ |
| Frequency Response Deviation | FO 50Hz ~ 20KHz max -10dB |
| Operating temperature | -20 +70 ± 2 ℃ Hours 2 0 ~ 5 0 % R.H. |
| Load test | White noise at 15 W 48 hours |
| Weight | 554g |
Other non-stipulated matters are based on CNS4784 4785 4786 based on JIS.C. 5530 5531

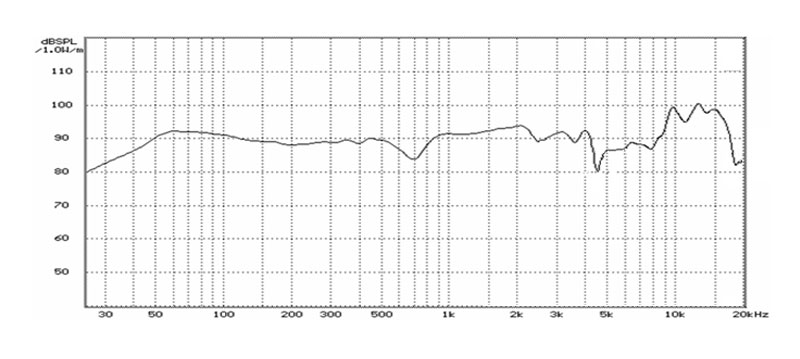

FREQUENCY RESPONSE CURVE(7*18)
