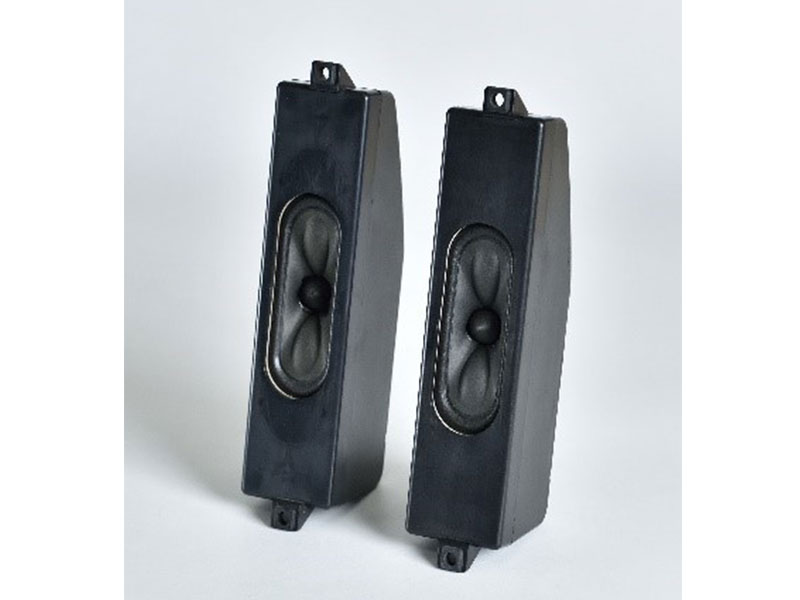

DESCRIPTION SPEAKER

SPEAKER SPECIFICATION

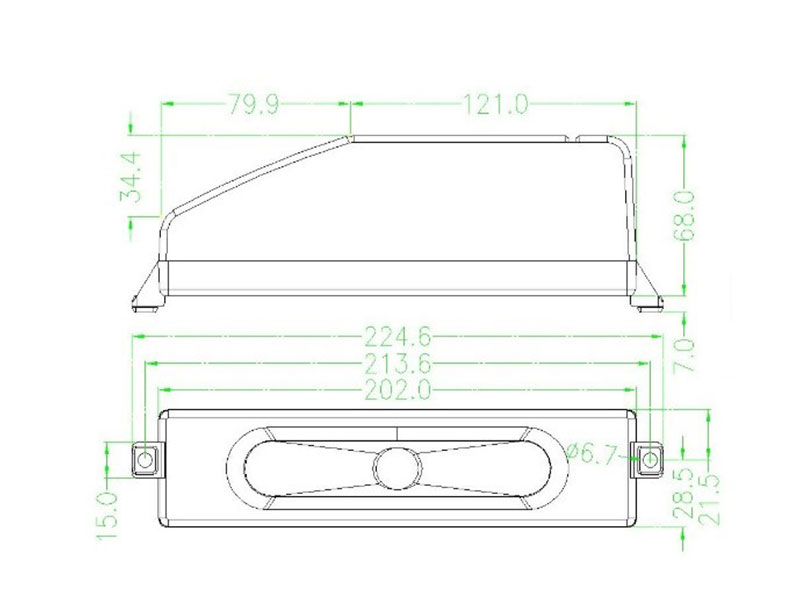

Outer Dimensions 225*48mm(See attached drawing)
Rated (Max.)Input 10 W (  W)
Voice Coil Imp. 8 ± 1.2 Ω  (450 Hz 1  V )
Lowest Resonance Frequency ( fo ) 160  ±  32  Hz  ( 1 V   )
Sound Pressure Level 84 ± 2 dB   ( 1 w  0.5  m )   at(0.6) (0.8) (1.0) (1.2) kHz
Frequency Response  Deviation FO Hz ~  20 KHz max  -10 dB
Operating temperature -20  +70 ± 2   ℃        Hours       2 0 ~ 5 0 %  R.H.
Load test White noise at   10 W 48 hours
Weight 305  g

Other non-stipulated matters are based on CNS4784 4785 4786 based on JIS.C. 5530 5531


FREQUENCY RESPONSE CURVE(7*18)
