DESCRIPTION SPEAKER

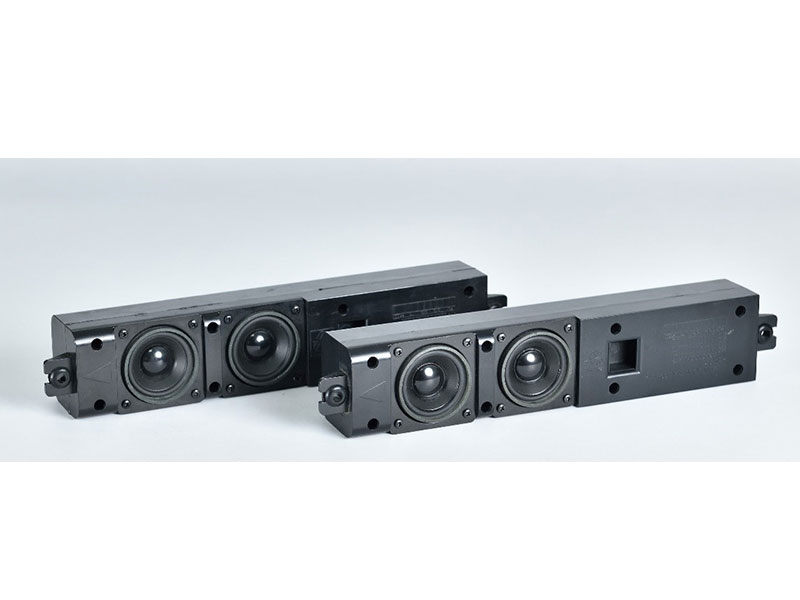

BOXL340W60-08L 音箱

SPEAKER SPECIFICATION

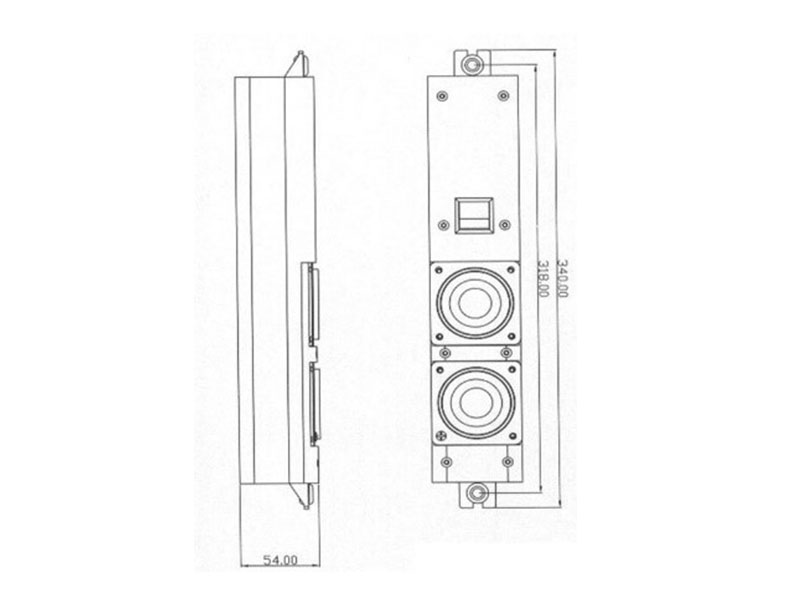

Outer Dimensions 340*60 mm(See attached drawing)
Rated (Max.)Input 15 W (  W)
Voice Coil Imp. 4   ± 0.6Ω  (  600    Hz 1 V )
Lowest Resonance Frequency ( fo ) 100  ±  20 Hz  ( 1 V   )
Sound Pressure Level 84± 2  dB   ( 1 w 1 m )   at (0.5) (0.6) (0.8) (1.0) kHz
Frequency Response  Deviation FO Hz ~  20 KHz max  -10 dB
Operating temperature -20  +70 ± 2   ℃        Hours       2 0 ~ 5 0 %  R.H.
Load test White noise at   15 W 48 hours
Weight 350  g

Other non-stipulated matters are based on CNS4784 4785 4786 based on JIS.C. 5530 5531


FREQUENCY RESPONSE CURVE(7*18)
