FA0002-IN Powerful Class-D amplifier module
FA0002-IN is a high-efficiency digital audio power amplifier with the maximum output of 15W x 2ch, that directly drives speaker while reducing distortion of pulse output signal and reducing noise on the signal.
Features
●Power limit function
●Pop noise reduction function
●S/N Radio>95dB
●Frequency adjustment
SPECIFICATION
| Maximum output power | 15W, THD+N = 10%, VDD = 15 V, RL = 8 Ω |
| Output power efficiency | >85% (VDDP=12V, RL = 8Ω) |
| Frequency Response. | 65Hz～20KHz |
| Impedance | 8 Ω compatible |
| Over current protection | YES |
| Short circuit protection | YES |
| Over temperature protection | YES |
| Power supply | 15V, 2.6A |

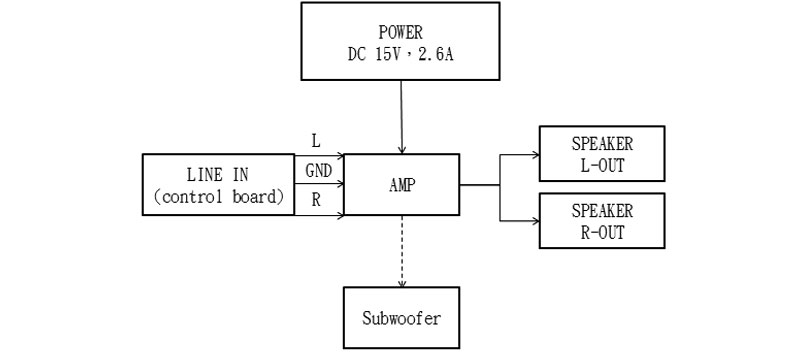

Typical Connection Diagram

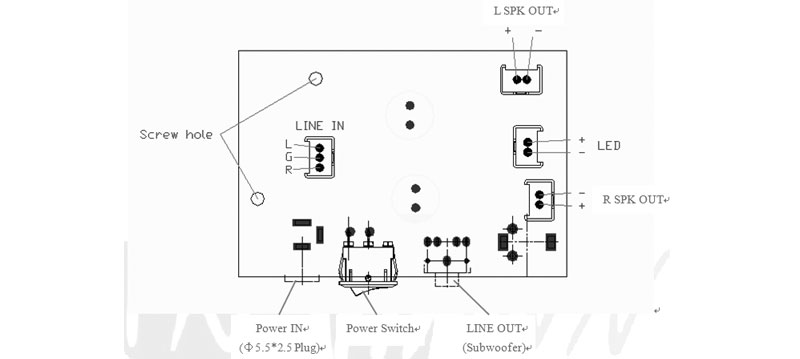

Pin Assignment
Amplifier

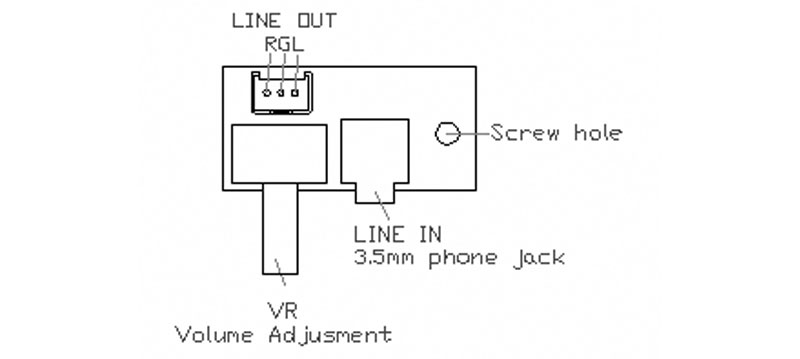

Control board

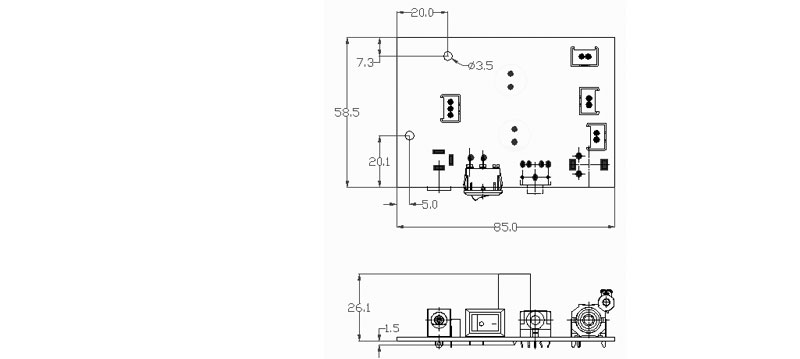

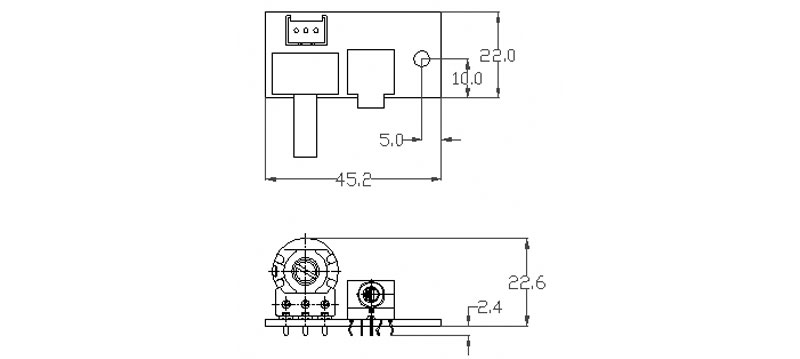

Module Dimension unit：mm
Amplifier
Control board
