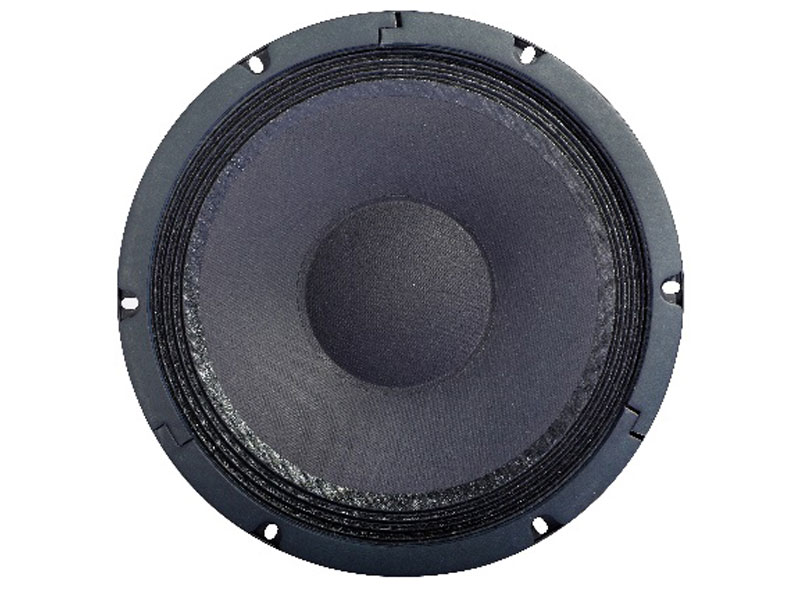

DESCRIPTION SPEAKER

SPEAKER SPECIFICATION
Outer Dimensions 260 mm(See attached drawing)
Rated (Max.)Input 100 W (150W)
Voice Coil Imp. 5.2  ± 1.04    Ω  (  90  Hz 1 V )
Lowest Resonance Frequency ( fo ) 40  ±   8       Hz  ( 1 V   )
Sound Pressure Level 90  ± 2   dB   ( 1 w 1 m )  at(0.1)(0.12)(0.15)(0.2)KHZ
Frequency Response  Deviation FO Hz ~    1 KHz max  -10 dB
Operating temperature -20  +70 ± 2   ℃        Hours       2 0 ~ 5 0 %  R.H.
Load test White noise at   100  W 48 hours
Weight 3700  g

Other non-stipulated matters are based on CNS4784 4785 4786 based on JIS.C. 5530 5531


FREQUENCY RESPONSE CURVE(7*18)
