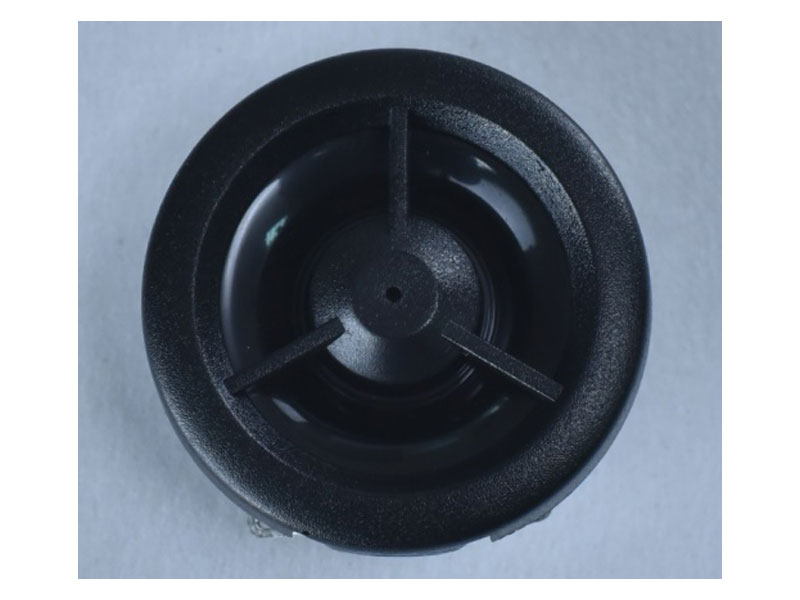

DESCRIPTION SPEAKER

SPEAKER SPECIFICATION
Outer Dimensions 36 mm(See attached drawing)
Rated (Max.)Input 15 W (30W)
Voice Coil Imp. 4  ± 0.6    Ω  (  5  kHz 1 V )
Lowest Resonance Frequency ( fo ) 2500  ±   500       Hz  ( 1 V   )
Sound Pressure Level 92  ± 2   dB   ( 1 w 0.5 m )  at(2.5)(3.0)(4.0)(5.0)KHZ
Frequency Response  Deviation FO 75Hz ~    20 KHz max  -10 dB
Operating temperature -20  +70 ± 2   ℃        Hours       2 0 ~ 5 0 %  R.H.
Load test White noise at   15  W 48 hours
Weight 12  g

Other non-stipulated matters are based on CNS4784 4785 4786 based on JIS.C. 5530 5531


FREQUENCY RESPONSE CURVE(7*18)
