DESCRIPTION SPEAKER

SPEAKER SPECIFICATION
Outer Dimensions 103 mm(See attached drawing)
Rated (Max.)Input 15 W (25W)
Voice Coil Imp. 4  ± 0.6    Ω  (  250  Hz 1 V )
Lowest Resonance Frequency ( fo ) 70  ±   14     Hz  ( 1 V   )
Sound Pressure Level 81  ± 2   dB   ( 1 w 0.5 m )  at(0.6)(0.8)(1.0)(1.2)KHZ
Frequency Response  Deviation FO Hz ~    20 KHz max  -10 dB
Operating temperature -20  +70 ± 2   ℃        Hours       2 0 ~ 5 0 %  R.H.
Load test White noise at  15  W 48 hours
Weight 336g

Other non-stipulated matters are based on CNS4784 4785 4786 based on JIS.C. 5530 5531

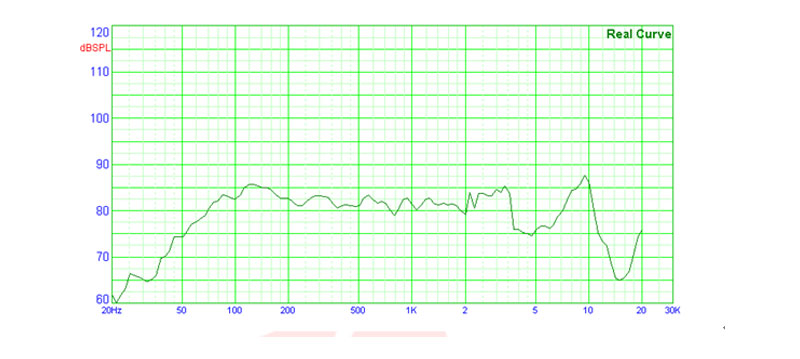

FREQUENCY RESPONSE CURVE(7*18)
