SPEAKER SPECIFICATION

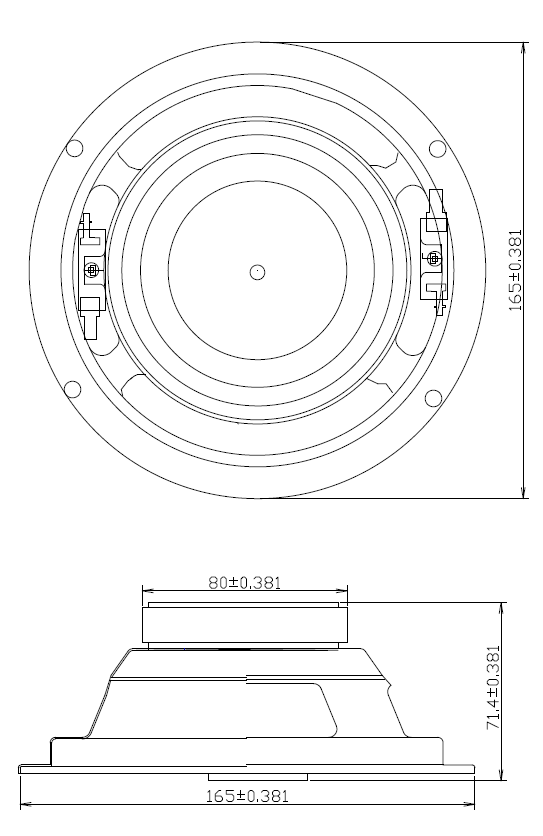

Outer Dimensions 165mm
Rated (Max.)Input 50 W
Voice Coil Imp. 4 ± 0.6   Ω  (  250 Hz 1 V )
Lowest Resonance Frequency ( fo ) 60 ± 13 Hz  ( 1 V   )
Sound Pressure Level 91 ± 2   dB   ( 0.1 w 0.5 m )  at(0.6)(0.8)(1.0)(1.2)KHZ
Frequency Response  Deviation 25dB max.   ( fo 40 HZ - 11 K Hz  )  -10 dB
Operating temperature -20  +70 ± 2   ℃        Hours       2 0 ~ 5 0 %  R.H.
Load test White noise at   50 W 72 hours
Weight 714 g

Other non-stipulated matters are based on CNS4784 4785 4786 based on JIS.C. 5530 5531

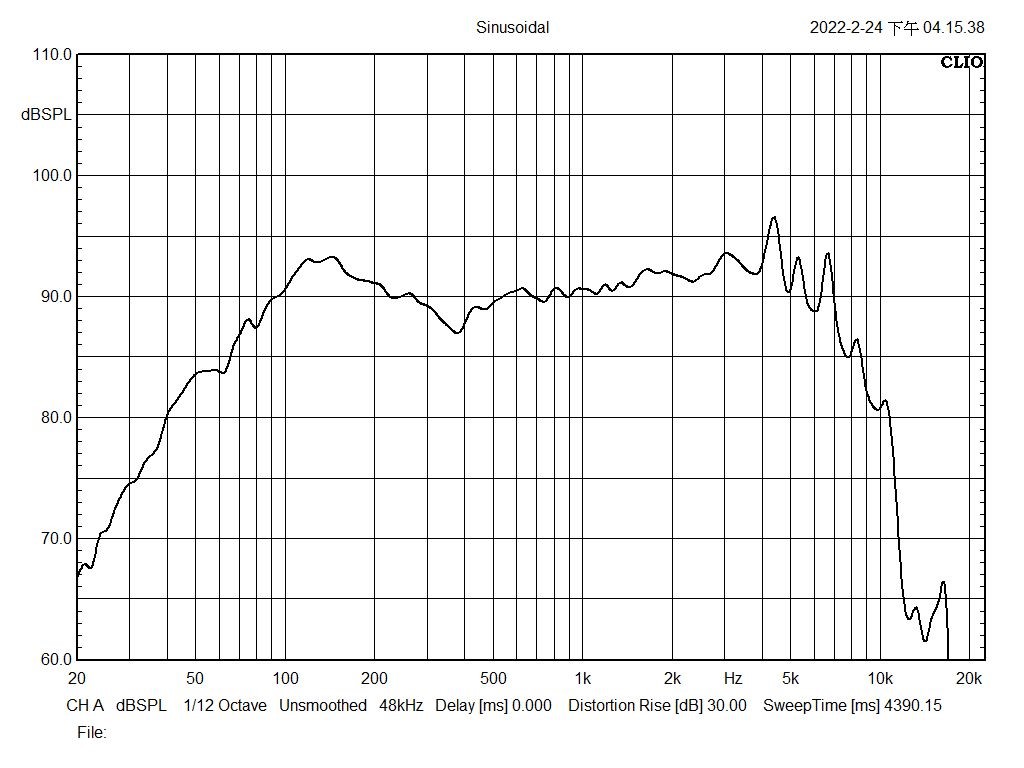

FREQUENCY RESPONSE CURVE(7*18)
