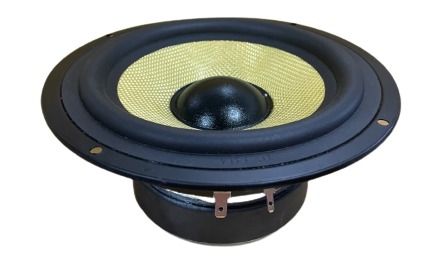

174R-A-FG
SPEAKER SPECIFICATION

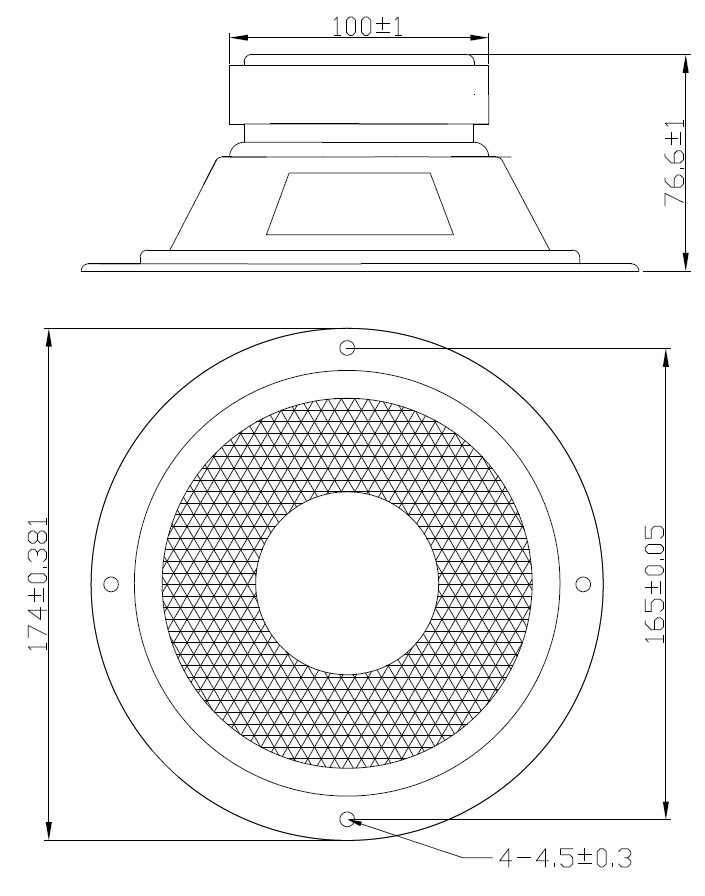

| Outer Dimensions | 174 mm |
| Rated (Max.)Input | 60 W |
| Voice Coil Imp. | 6 ± 0.9 Ω ( 300 Hz 1 V ) |
| Lowest Resonance Frequency ( fo ) | 40 ± 8 Hz ( 1 V ) |
| Sound Pressure Level | 86 ± 2 dB ( 0.1 w 1 m ) at(0.6)(0.8)(1.0)(1.2)KHZ |
| Frequency Response Deviation | 25dB max. ( fo 45 HZ - 9 K Hz ) -10 dB |
| Operating temperature | -20 +70 ± 2 ℃ Hours 2 0 ~ 5 0 % R.H. |
| Load test | White noise at 60 W 72 hours |
| Weight | 1383 g |
Other non-stipulated matters are based on CNS4784 4785 4786 based on JIS.C. 5530 5531
FREQUENCY RESPONSE CURVE(7*18)
