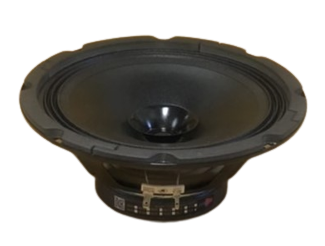

210R-B-FG
DESCRIPTION SPEAKER
SPEAKER SPECIFICATION

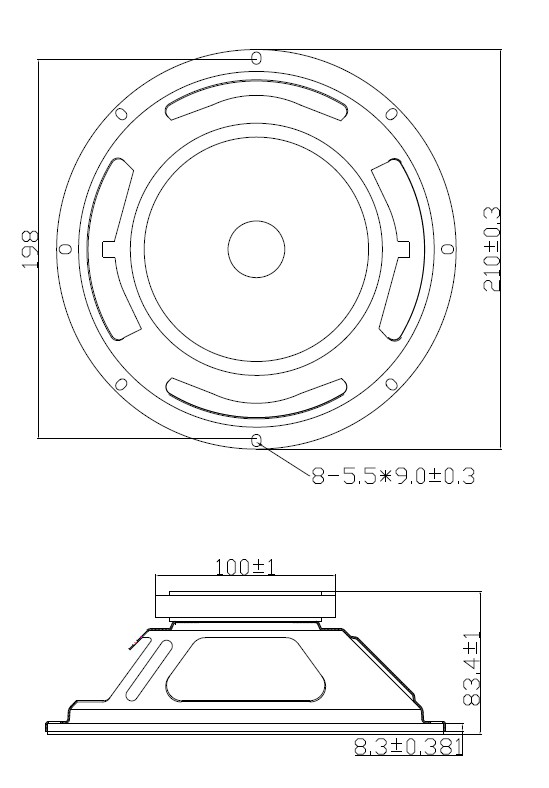

| Outer Dimensions | 210 mm(See attached drawing) |
| Rated (Max.)Input | 150 W (180W) |
| Voice Coil Imp. | 4 ± 0.6 Ω ( 300 Hz 1 V ) |
| Lowest Resonance Frequency ( fo ) | 65 ± 13 Hz ( 1 V ) |
| Sound Pressure Level | 89 ± 2 dB ( 0.1 w 1 m ) at(0.6)(0.8)(1.0)(1.2)KHZ |
| Frequency Response Deviation | FO 45 Hz ~ 8 KHz max -10 dB |
| Operating temperature | -20 +70 ± 2 ℃ Hours 2 0 ~ 5 0 % R.H. |
| Load test | White noise at 150 W 72 hours |
| Weight | 1128 g |
Other non-stipulated matters are based on CNS4784 4785 4786 based on JIS.C. 5530 5531

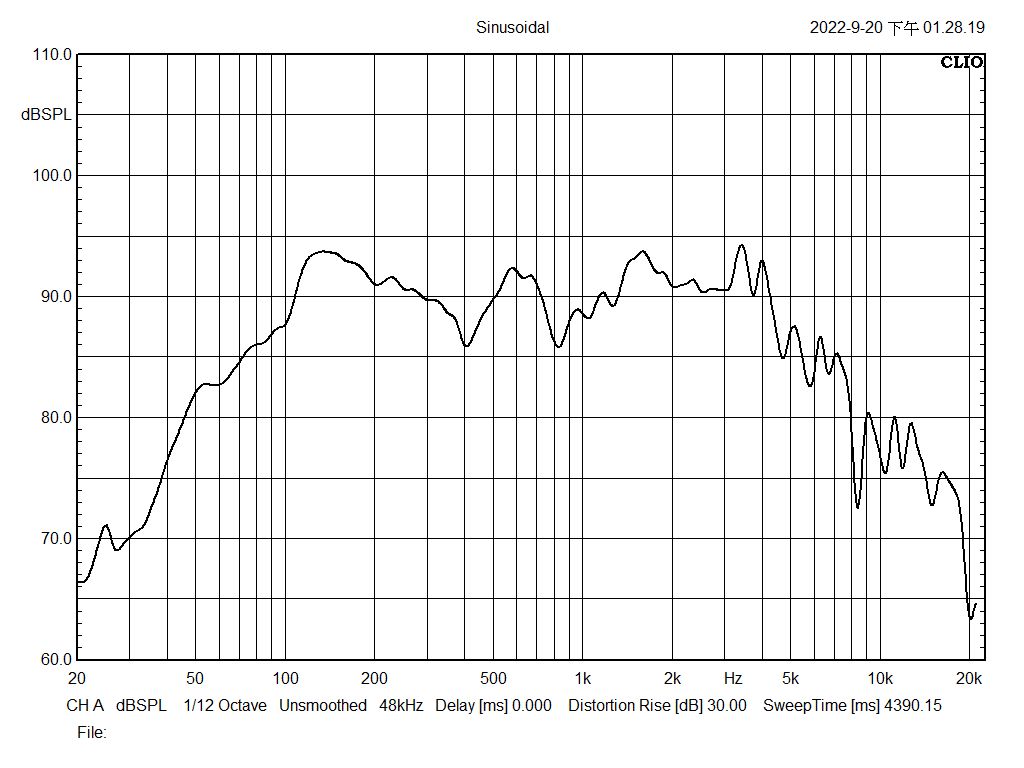

FREQUENCY RESPONSE CURVE(7*18)
