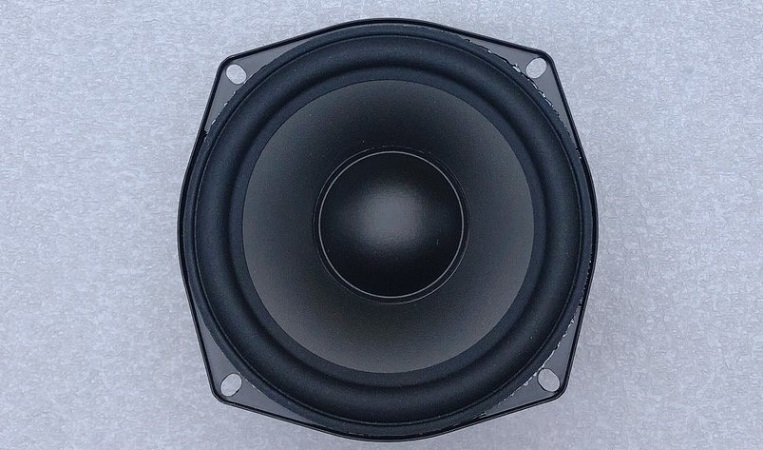

W133P
DESCRIPTION SPEAKER
SPEAKER SPECIFICATION

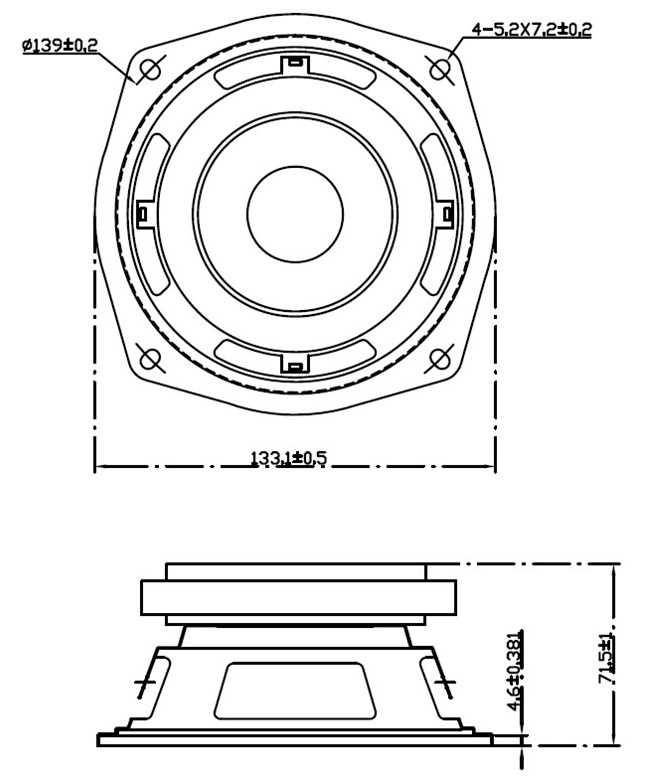

| Outer Dimensions | 133.1 mm(See attached drawing) |
| Rated (Max.)Input | 40 W (60W) |
| Voice Coil Imp. | 4 ± 0.6 Ω ( 200 Hz 1 V ) |
| Lowest Resonance Frequency ( fo ) | 65 ± 13 Hz ( 1 V ) |
| Sound Pressure Level | 88 ± 2dB ( 1 w 0.5 m ) at(0.2)(0.3)(0.4)(0.5)KHZ |
| Frequency Response Deviation | FO Hz ~ 20 KHz max -10 dB |
| Operating temperature | -20 +70 ± 2 ℃ Hours 2 0 ~ 5 0 % R.H. |
| Load test | White noise at 50 W 72 hours |
| Weight | 868 g |
Other non-stipulated matters are based on CNS4784 4785 4786 based on JIS.C. 5530 5531
