152RR-B

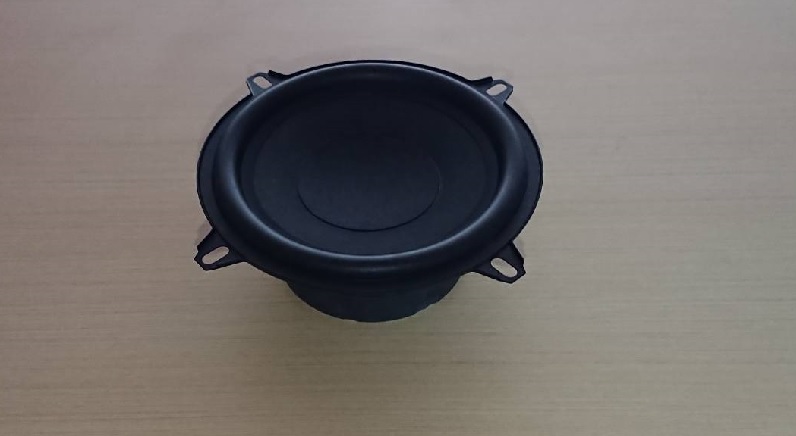

DESCRIPTION SPEAKER
SPEAKER SPECIFICATION
|
Outer Dimensions |

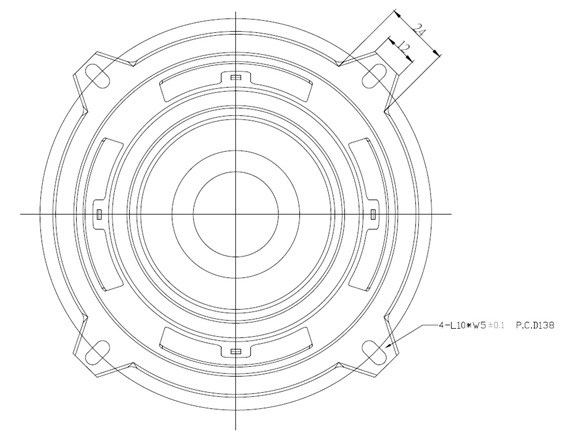

129 mm(See attached drawing) |
|
Rated (Max.)Input |
40 W (75W) |
|
Voice Coil Imp. |
4 ± 0.6 Ω ( 200 Hz 1 V ) |
|
Lowest Resonance Frequency ( fo ) |
60 ± 12 Hz ( 1 V ) |
|
Sound Pressure Level |
88 ± 3 dB ( 1 w 0.5 m ) at(0.25)(0.3)(0.4)(0.5)KHZ |
|

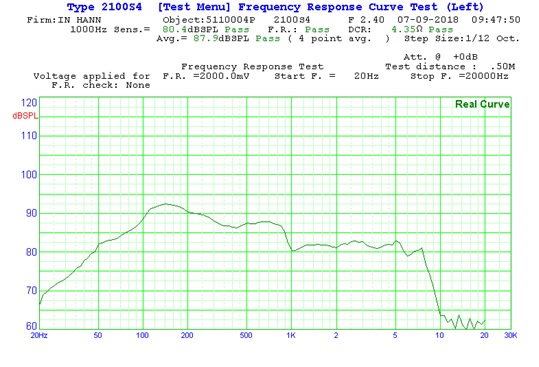

Frequency Response Deviation |
25 dB max. ( fo 8 K Hz )輸出音壓-10dB |
|
Operating temperature |
-20 +70 ± 2 ℃ Hours 2 0 ~ 5 0 % R.H. |
|
Load test |
White noise at 40 W 72 hours |
|
Weight |
660 g |
Other non-stipulated matters are based on CNS4784 4785 4786 based on JIS.C. 5530 5531
