DESCRIPTION SPEAKER

SPEAKER SPECIFICATION

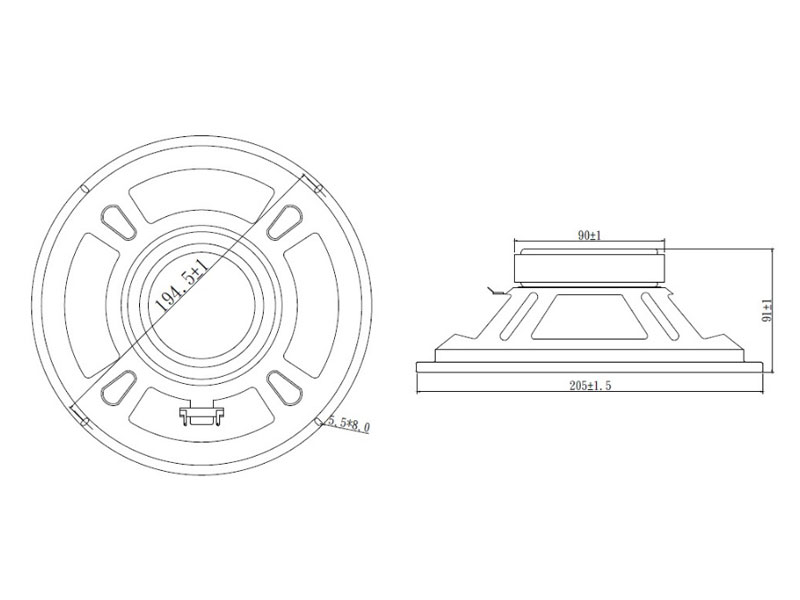

Outer Dimensions 205 mm(See attached drawing)
Rated (Max.)Input 30 W (W)
Voice Coil Imp. 8  ± 1.2    Ω  (  200  Hz 1 V )
Lowest Resonance Frequency ( fo ) 38  ±   7.6       Hz  ( 1 V   )
Sound Pressure Level 91  ± 2   dB   ( 1 w 0.5 m )  at(0.25)(0.3)(0.4)(0.5)KHZ
Frequency Response  Deviation FO Hz ~    5 KHz max  -10 dB
Operating temperature -20  +70 ± 2   ℃        Hours       2 0 ~ 5 0 %  R.H.
Load test White noise at   30   W 48 hours
Weight 1300  g

Other non-stipulated matters are based on CNS4784 4785 4786 based on JIS.C. 5530 5531

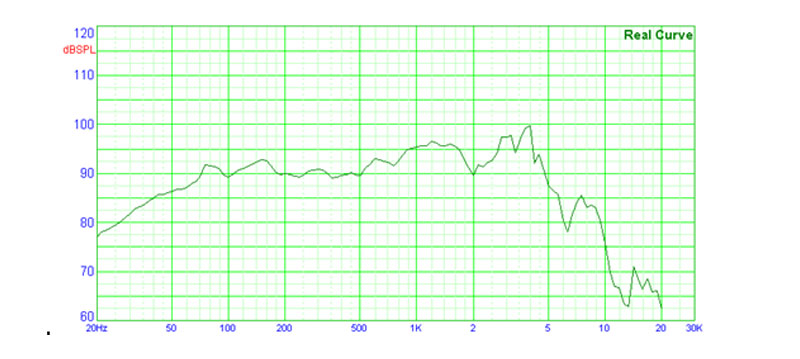

FREQUENCY RESPONSE CURVE(7*18)
